Specificații
General
- Marcă
- BARKAN
- Cod articol
- 3400W.W
- Categorie
- Televizoare si suporturi
- Tip
- Produs fizic
Caracteristici principale
- Tip Suport
- Fix
- Sistem rotativ
- Da
- Dimensiune VESA minima
- 100 x 100 mm
- Dimensiune VESA maxima
- 400 x 400 mm
- Nr ecrane suportate
- 1
- Montare
- Perete
- Marime Maxima Ecran
- intre 61 si 80"
- Greutate maxima suportata
- intre 31 si 50 kg
Specificații
- Unghi de înclinare
- 0 - 15°
- Interfață de montare
- 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,300 x 400,300 x 300,400 x 400,400 x 300
- Număr afișaje suportate
- 1
- Tip montare
- Perete
- Greutate maximă suportată
- 40 kg
- Unghi de rotație
- 360°
- Diagonală maximă ecran
- 165.1 cm (65)
- Diagonală minimă ecran
- 73.7 cm (29)
- Montare VESA minimă
- 100 x 100 mm
- Montare VESA maximă
- 400 x 400 mm
- Culoare
- Alb
Garanție
- Garanție
- 24 luni
Descriere

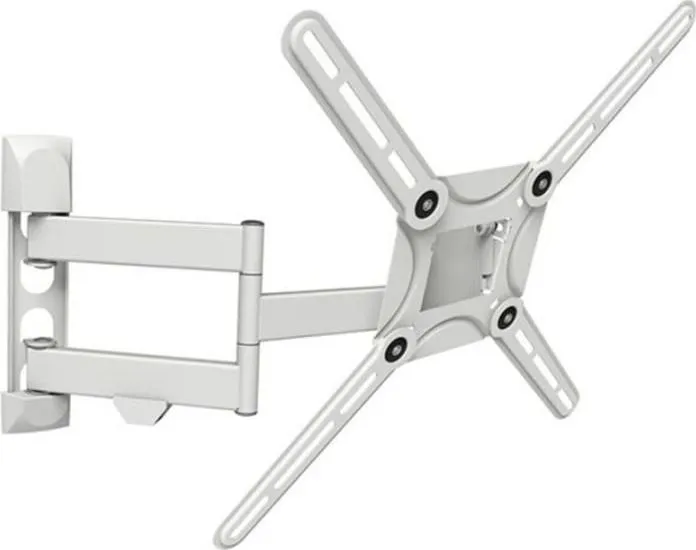

Suport perete Barkan Full Motion TV Wall Mount 29"-65" Lifetime Warranty. Includes a patented mechanism to fit both flat and curved screens. Minimum distance from the wall: 2.7" / 6.9 cm. Maximum distance from the wall: 17.3" / 44 cm. The mount has 3 pivots which: rotate near the wall (double arm) 180°, fold 360°, swivel near the screen connection plate 180° in addition to a tool free tilt from 0° till 15°. Allows swinging in and out of niches and various viewing positions. Fits TVs with VESA standard (Bracket Mounting Holes Patterns) 100x100, 100x200, 200x100, 200x200, 200x300, 300x300, 300x400, 400x200, 400x300, 400x400 mm and non VESA up to 400x400 mm. Also compatible for larger screen sizes, where their specifications comply to the mount. Color: white. Please check the list of included screen-connection screws in the assembly instructions. If your screen requires different screen- connection screws, please purchase them in your local hardware store. Previous and parallel versions: 3400W, E340. Functions Max TV size Max TV weight TV VESA 29" - 65"/ 74 - 165cm 88lbs/ 40kg up to 400x400mm Flat TV, Curved TV TV type Full Motion - Rotate, Fold, Swivel & Tilt
