Specificații
General
- Marcă
- LINDY
- Cod articol
- LY-38139
- Categorie
- Conectica si cabluri
- Tip
- Produs fizic
Caracteristici
- Tipul
- Emițător & receiver AV
- Tipuri de cabluri suportate
- Cat5e, Cat6, Cat7
- Maximă de transfer de la distanţă
- 70 m
- Protecție Descărcare Electrostatică (ESD)
- 8 kV
- Moduri video suportate
- 1080p
- Lăţime de bandă
- 10,2 Gbit/s
- HDCP
- Da
- 3D
- Da
- Suport Consumer Electronics Control (CEC)
- Da
- Culoarea produsului
- Negru
Conexiune
- Tehnologia de conectare
- Prin cablu
- Porturi RS-45 intrare
- 1
- Porturi RS-45 ieșire
- 1
- Intrare HDMI
- 1
- Număr de ieșiri HDMI
- 1
- Intrare video
- 1
- Iesire video
- 1
- Intrare la distanță (IR)
- 2
- Ieșire la distanță (IR)
- 2
- Mufă jack CC-intrare
- Da
Managementul energiei
- Tensiune de lucru
- 24 V
- Curent de ieşire
- 1 A
- Adaptor extern de curent
- Da
Conditii de mediu
- Interval de temperatură de funcţionare (T-T)
- 0 - 40 °C
- Temperatură de depozitare (T-T)
- -20 - 60 °C
- Interval relativ operaţional de umiditate
- 20 - 90%
Greutate şi dimensiuni
- Dimensiuni receiver (L x l x H)
- 65 x 100 x 25 mm
- Greutatea receptorului
- 200 g
- Dimensiuni transmițător (l x A x Î)
- 65 x 100 x 25 mm
- Greutate transmițător
- 200 g
Garanție
- Garanție
- 24 luni
Descriere

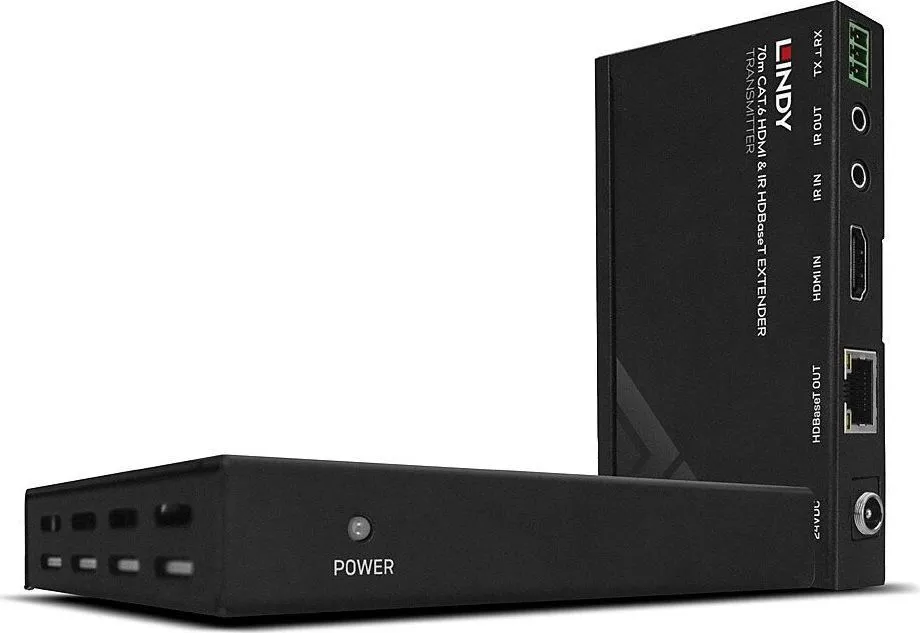

Extender HDMI & IR Lindy 70m C6 HDBaseT with PoC
Extend HDMI resolutions up to 70m via HDBaseT
Extend HDMI resolutions up to 70m via HDBaseT
Description
- Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology
- Supports HDMI 10.2G resolutions up to 4K@30Hz 4:4:4
- CEC pass-through and bi-directional IR for simple control
- Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
Technical details
Specifications
- AV Interface: HDMI
- Interface Standard: HDMI 1.4
- Supported Bandwidth: 10.2 Gbps
- Maximum Distance: 70m (229.66ft)
- Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
- HDCP Support: Pass-through
- EDID Pass Through: Pass-through
- Supported Audio: Pass-through
- Separate Audio Ports: -
- IR Support: 20-60kHz
- CEC Support: -
- Serial Interface: RS-232
- Transmission Protocol: HDBaseT
- Transmission Medium: 1 x Cat.5e/6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS010
- Special Features: PoC (Power over Cat.6)
Connectors
- Transmitter Input: HDMI (Female), IR (Female)
- Transmitter Output: RJ45 (Female), IR Female)
- Receiver Input: RJ45 (Female), IR Female)
- Receiver Ouput: HDMI (Female), IR (Female)
- Bidirectonal Ports: RS-232
- Power: 5.5/2.1mm DC socket
Physical Properties
- Dimensions WxDxH: 65x115x17mm (2.56x4.53x0.67in) per unit
- Housing Material: Metal
- Net Weight: 0.2kg (0.44lb) per unit
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 193x191x69mm (7.6x7.52x2.72in)
- Gross Weight: 0.84kg (1.85lb)
- Warranty (Years): 2
- Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
- Transmitter unit
- Receiver unit
- 2 x IR emitter cable
- 2 x IR receiver cable
- Mounting kit
- Multi-Country Power Supply (EU, UK, US & AUS)
- Lindy manual
