Specificații
General
- Marcă
- HIKVISION
- Cod articol
- DS-K2702WX-E1
- Categorie
- Control acces
- Tip
- Produs fizic
Caracteristici principale
- Numar usi
- 2
- Wiegand
- Da
- RS-485
- Da
- OSDP
- Nu
- USB
- Da
- Interfata retea
- 10/100/1000Mbps
- Relee
- N/A
- Intrare contact usa
- 4
- Intrare buton cerere iesire
- 2
- Intrare alarma
- 4
- Iesire alarma
- 2
- Contact sabotaj
- Da
- Alimentare
- 100-240Vca
- Configurare WEB browser
- Da
Specificații
- Interfață
- RS-485
- Ethernet LAN
- Da
- Viteze Ethernet LAN
- 10,100,1000 Mbit/s
- Număr porturi USB 2.0
- 1
- Temperatură de funcționare
- -40 - 55 °C
- Umiditate de funcționare
- 0 - 90%
- Porturi Ethernet (RJ-45)
- 1
- Consum de energie (tipic)
- 72 W
- Indicatoare LED
- Da
Garanție
- Garanție
- 36 luni
Descriere

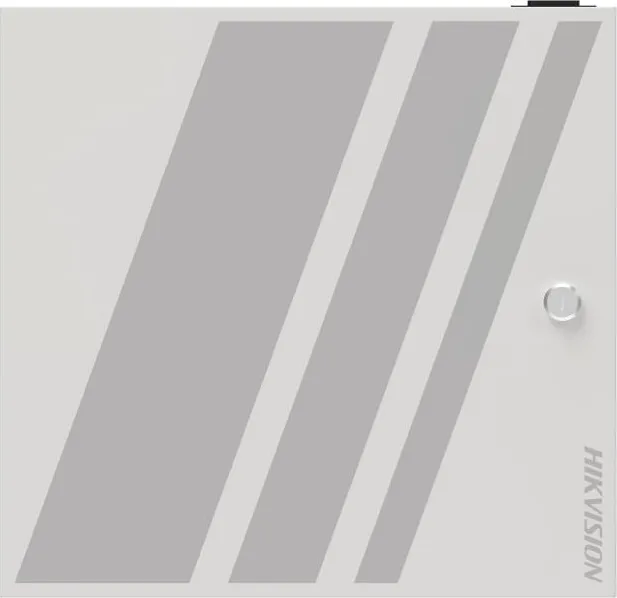

Centrala acces conol cu 2 usi Hikvision DS-K2702WX-E1: -Supports 2-door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled -Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus. -Web configuration management. All configurations can be realized via web without software application -Supports professional access control applications such as multi-door interlocking and anti-passback -Supports backup battery access. Charging and discharging are available -It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection -Powers supply by PoE, and Wi-Fi is available
